Description

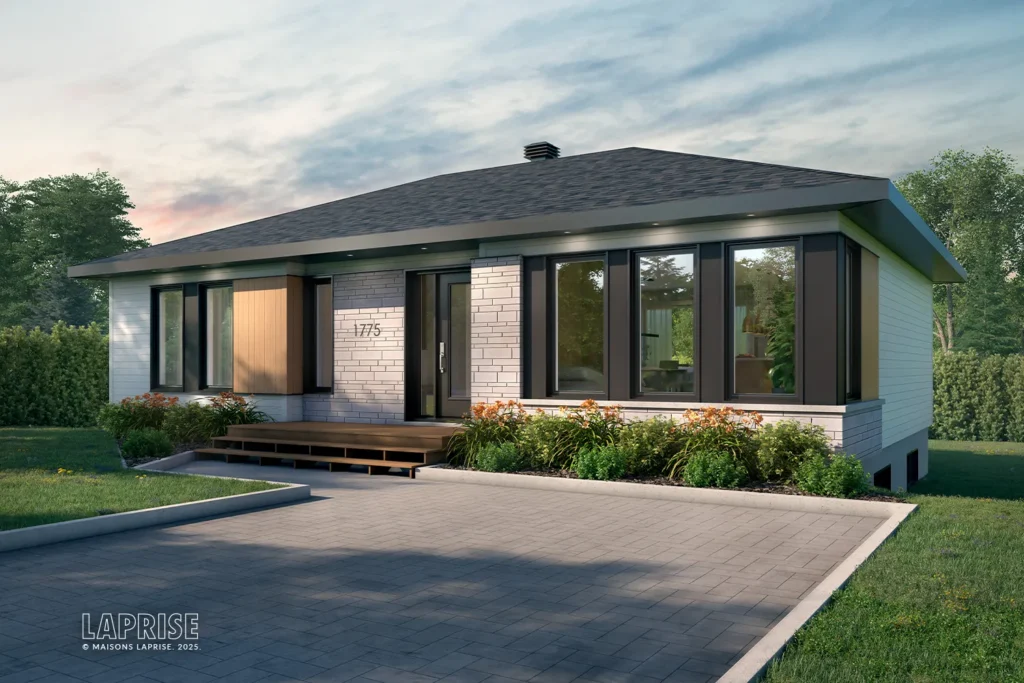

Discover this charming bungalow with its attractive 4-sloped roof and thoughtfully arranged exterior finishes and materials. The strategic placement of windows, entrance door and side glass provides abundant natural light and an enjoyable luminous house interior.

The heart of this interior design is an inviting contemporary open plan concept. The spacious and trendy kitchen is definitely the focal point of this house plan, allowing you to showcase your culinary skills and gather loved ones around a designer central island. Closeby the dining room and living room create a warm and welcoming atmosphere, perfect for intimate dinners or impromptu gatherings. The ground floor is completed by a well-appointed entrance with a wardrobe, a basement staircase for future expansion, a patio door, a full bathroom, two bedrooms with ample wardrobe space and a convenient linen room.

The basement provides an opportunity for you to fit it out in your own time and develop the space according to your needs, budget and timeline. This versatile area offers endless possibilities for additional living space, recreational areas, or a personal retreat. Inspired by the timeless Mid-century modern trend, this bungalow design is a reliable and stylish choice that will stand the test of time.

2
1
No
1082
Model
Bunga (0901)
High performance kit price
On demand
Laprise base kit
FRAMEWORK-EXTERIOR WALLS

THE STANDARD LAPRISE HIGH PERFORMANCE EXTERIOR WALLS (Rt-32.6) with anti-torsion and anti-thermal bridge features are factory-built with 5 ½’’ thick fiberglass insulation and 2’’x 6’’ positioned at 16’’ c-c, using world-class equipment, as per plan, and consists of:

Vertical exterior laths of 1’’x3’’; Continuous rigid insulation of 1½’’ and ½’’ plywood covering the entire surface of the walls; 2’’x 6’’ dried wood sills, studs, and top plate; lintels (wood or engineered wood); Sealed polyethylene membrane serving as a vapor barrier; Factory-installed double lathing; Acoustic sealant; Tape and seal weathershield and vapor barrier joints.

OPTION FIBERGLASS WOOL (Rt-38.7) : Very High Performance Walls with 7 ½’’ thick fiberglass insulation in 2’’x 8’’ for superior thermal performance;

OPTION ROCK WOOL (Rt-32.6) : High Performance Walls with 5 ½’’ thick rock wool insulation in 2’’x 6’’;

OPTION ROCK WOOL (Rt-38.7) : Very High Performance Walls with 7 ½’’ thick rock wool insulation in 2’’x 8’’ for superior thermal performance and resistance to sound, fire, water, microorganisms, mold, termites, and other insects.

FRAMEWORK-INTERIOR DIVISIONS

Pre-assembled non load-bearing divisions with anti-torsion system ready for drywalling installation; Pre-assembled load-bearing divisions with anti-torsion system ready for drywalling installation; Unassembled basement divisions (according to plan); 2"x4" or 2"x6" wood studs (dry wood);

FRAMEWORK-FLOORS

Tongue-and-groove 5/8’’ plywood, glue, and screws; Floor beams and joists; Brackets for fastening and nails; Load-bearing columns; Floor perimeter joists; Perimeter insulation with urethane (included if insulation installation is part of the contract); Structural beams; Anchor plates; Podium bath enclosure (according to the plan). In case of concrete slab construction: floor is a concrete slab.

FRAMEWORK-ROOF

Plywood ½" (gables and roofs); Asphalt architectural shingles and accessories; Plastic cement (pitch); Shingled starters; Drip edge flashings; Eaves protection and self-adhesive membranes (according to plan); Galvanized steel valley flashings; Roof trusses and bracing; Self-adhesive membranes (according to plan). Attic fan.

FRAMEWORK-CEILING

Attic insulation; Insulated R-60 attic access hatch; 1’’x3’’ ceiling laths at 16’’c-c; Sealed polyethylene membrane serving as a vapor barrier; tape and sealant to seal vapor barrier joints; Ventilation deflectors.

FRAMEWORK-DOORS AND WINDOWS

Lorendo PVC windows with energy-efficient thermal glasses with PVC-covered interior window jamb extensions; Windows & doors head flashings; ; Insulated exterior steel doors; Exterior door handles; Insulated steel garage door (according to plan); factory-installed waterproofing membrane around openings; Insulating foam (urethane spray) around openings (doors and windows).

EXTERIOR FINISHES

Aluminum ventilated soffit; Fascia (according to plan); Lightweight exterior siding (vinyl, wood fiber or wood) and finishing accessories (according to plan); Sun guard beams (according to plan); External load-bearing columns/posts (according to plan); Balcony and/or patio and/or gallery (according to plan); Decorative elements (according to plan); Traditional masonry not included; Concrete balcony/porch included if Foundation Category is included in sales contract (according to plan); Fireplace box (according to plan).

INTERIOR FINISHES

Drywall boards ½" and screws; Baseboards and moldings; Interior doors; Interior door handles and hardware; Adjustable closet rail-based storage system with rods, poles and wire shelves; Staircase, guardrail and hand rails (according to plan; Decorative elements (according to plan); HVR (Ventilation recovery device with control and timer) included with Ventilation Installation Category.

DELIVERY

Kit transportation is included within 300 km from the city of Montmagny (Quebec) by municipal road network. Every additional km (exceeding 300 km) is calculated according to the kit delivery/construction address. Transport by sea not included. *FOB price applies for delivery outside the province of Quebec.

EXCLUSIONS

Excavation; Foundation and foundation insulation; Kit installation and subcontracting works (plumbing, electricity, etc.); Floor coverings; Drywalling: plastering/jointing; Painting; Wood fireplace and its prefabricated fireplace; Kitchen & bathroom cabinets and built-ins; Masonry stones; Gutters; Dry wall corners; HVR (Ventilation recovery device with control and timer) not included but included with Ventilation Installation Category; Land and services; Other possible exclusions.

* Quantity of materials guaranteed - 10 year structure warranty
