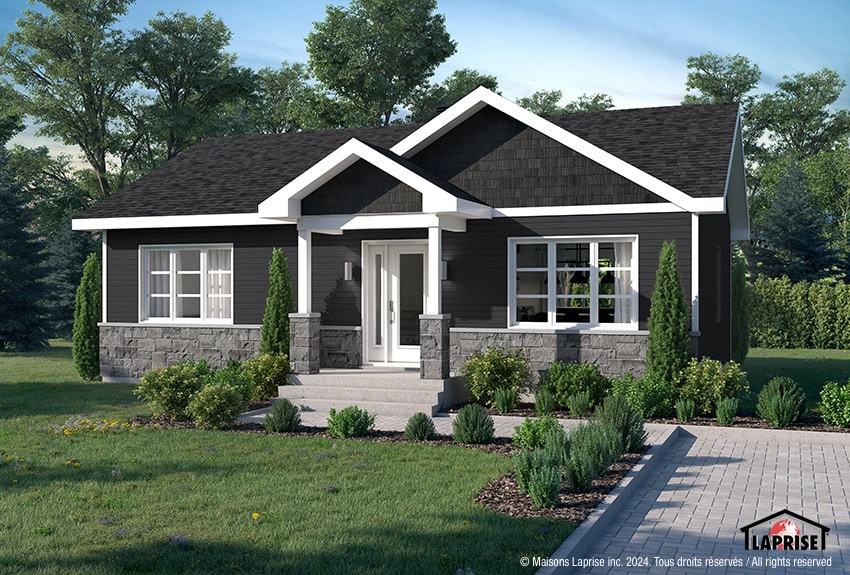

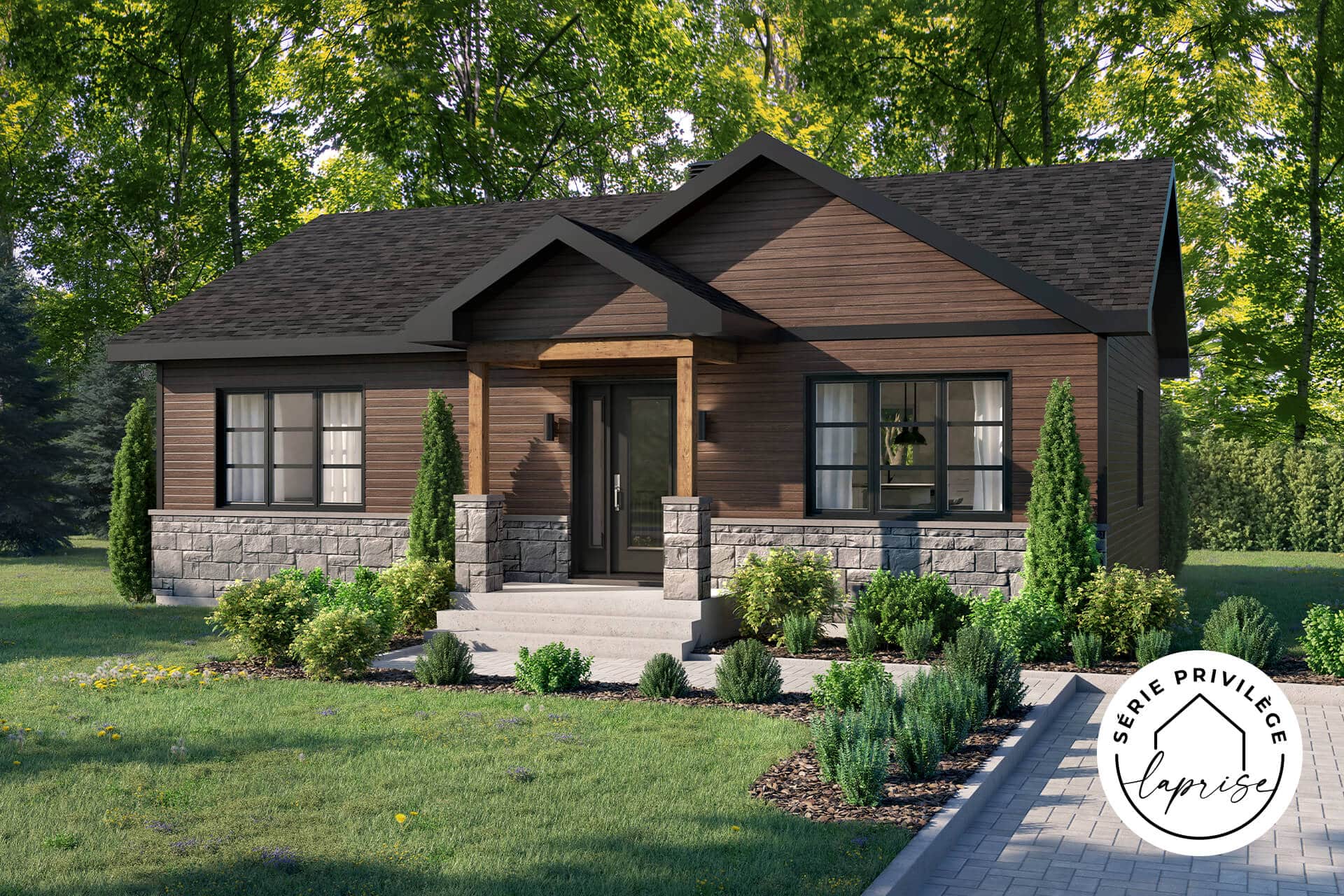

CONCRETE SLAB VERSION. PRIVILEGE SERIES. PRIVILEGE PRICING. Classic bungalow with a hint of contemporary designed specifically for concrete slab. A variation of model 0368, this little classic features traditional gables and classic exterior finishes. For this version, our designers have chosen a more contemporaty style of living. The interior floor plan enjoys all the modern functionnality, luminosity and flow sought after by savvy buyers. The combinaison of favorite design elements makes this home plan an excellent value-added proposition. The bright and airy open plan lay-out, highlighted by a sleek kitchen and central island, is wrapped by a curtain of quadruple patio-doors and a wall of integrated cupboards. This home plan reveals a great deal of features caracterizing the new generation of kitchen design and space management. This model definetely needs to be discovered!
2
1
No
951 ft2
THE STANDARD LAPRISE HIGH PERFORMANCE EXTERIOR WALLS (Rt-32.6) with anti-torsion and anti-thermal bridge features are factory-built with 5 ½’’ thick fiberglass insulation and 2’’x 6’’ positioned at 16’’ c-c, using world-class equipment, as per plan, and consists of:
Vertical exterior laths of 1’’x3’’; Continuous rigid insulation of 1½’’ and ½’’ plywood covering the entire surface of the walls; 2’’x 6’’ dried wood sills, studs, and top plate; lintels (wood or engineered wood); Sealed polyethylene membrane serving as a vapor barrier; Factory-installed double lathing; Acoustic sealant; Tape and seal weathershield and vapor barrier joints.
OPTION FIBERGLASS WOOL (Rt-38.7) : Very High Performance Walls with 7 ½’’ thick fiberglass insulation in 2’’x 8’’ for superior thermal performance;
OPTION ROCK WOOL (Rt-32.6) : High Performance Walls with 5 ½’’ thick rock wool insulation in 2’’x 6’’;
OPTION ROCK WOOL (Rt-38.7) : Very High Performance Walls with 7 ½’’ thick rock wool insulation in 2’’x 8’’ for superior thermal performance and resistance to sound, fire, water, microorganisms, mold, termites, and other insects.
Pre-assembled non load-bearing divisions with anti-torsion system ready for drywalling installation; Pre-assembled load-bearing divisions with anti-torsion system ready for drywalling installation; Unassembled basement divisions (according to plan); 2"x4" or 2"x6" wood studs (dry wood);
Tongue-and-groove 5/8’’ plywood, glue, and screws; Floor beams and joists; Brackets for fastening and nails; Load-bearing columns; Floor perimeter joists; Perimeter insulation with urethane (included if insulation installation is part of the contract); Structural beams; Anchor plates; Podium bath enclosure (according to the plan). In case of concrete slab construction: floor is made of a concrete slab.
Plywood ½" (gables and roofs); Asphalt architectural shingles and accessories; Plastic cement (pitch); Shingled starters; Drip edge flashings; Eaves protection and self-adhesive membranes (according to plan); Galvanized steel valley flashings; Roof trusses and bracing; Self-adhesive membranes (according to plan). Attic fan.
Attic insulation; Insulated R-60 attic access hatch; 1’’x3’’ ceiling laths at 16’’c-c; Sealed polyethylene membrane serving as a vapor barrier; tape and sealant to seal vapor barrier joints; Ventilation deflectors.
Lorendo PVC windows with energy-efficient thermal glasses with PVC-covered interior window jamb extensions; Windows & doors head flashings; ; Insulated exterior steel doors; Exterior door handles; Insulated steel garage door (according to plan); factory-installed waterproofing membrane around openings; Insulating foam (urethane spray) around openings (doors and windows).
Aluminum ventilated soffit; Fascia (according to plan); Lightweight exterior siding (vinyl, wood fiber or wood) and finishing accessories (according to plan); Sun guard beams (according to plan); External load-bearing columns/posts (according to plan); Balcony and/or patio and/or gallery (according to plan); Decorative elements (according to plan); Traditional masonry not included; Concrete balcony/porch included if Foundation Category is included in sales contract; Fireplace box (according to plan).
Drywall boards ½" and screws; Baseboards and moldings; Interior doors; Interior door handles and hardware; Adjustable closet rail-based storage system with rods, poles and wire shelves; Staircase, guardrail and hand rails (according to plan); Decorative elements (according to plan); HVR Heat & ventilation recovery device with control and one timer per bathroom.
Kit transportation is included within 300 km from the city of Montmagny (Quebec) by municipal road network. Every additional km (exceeding 300 km) is calculated according to the kit delivery/construction address. Transport by sea not included. *FOB price applies for delivery outside the province of Quebec.
Excavation; Foundation and foundation insulation; Kit installation and subcontracting works (plumbing, electricity, etc.); Floor coverings; Drywalling: plastering/jointing; Painting; Wood fireplace and its prefabricated fireplace; Kitchen & bathroom cabinets and built-ins; Masonry stones; Gutters; Dry wall corners; Land and services; Other possible exclusions.
